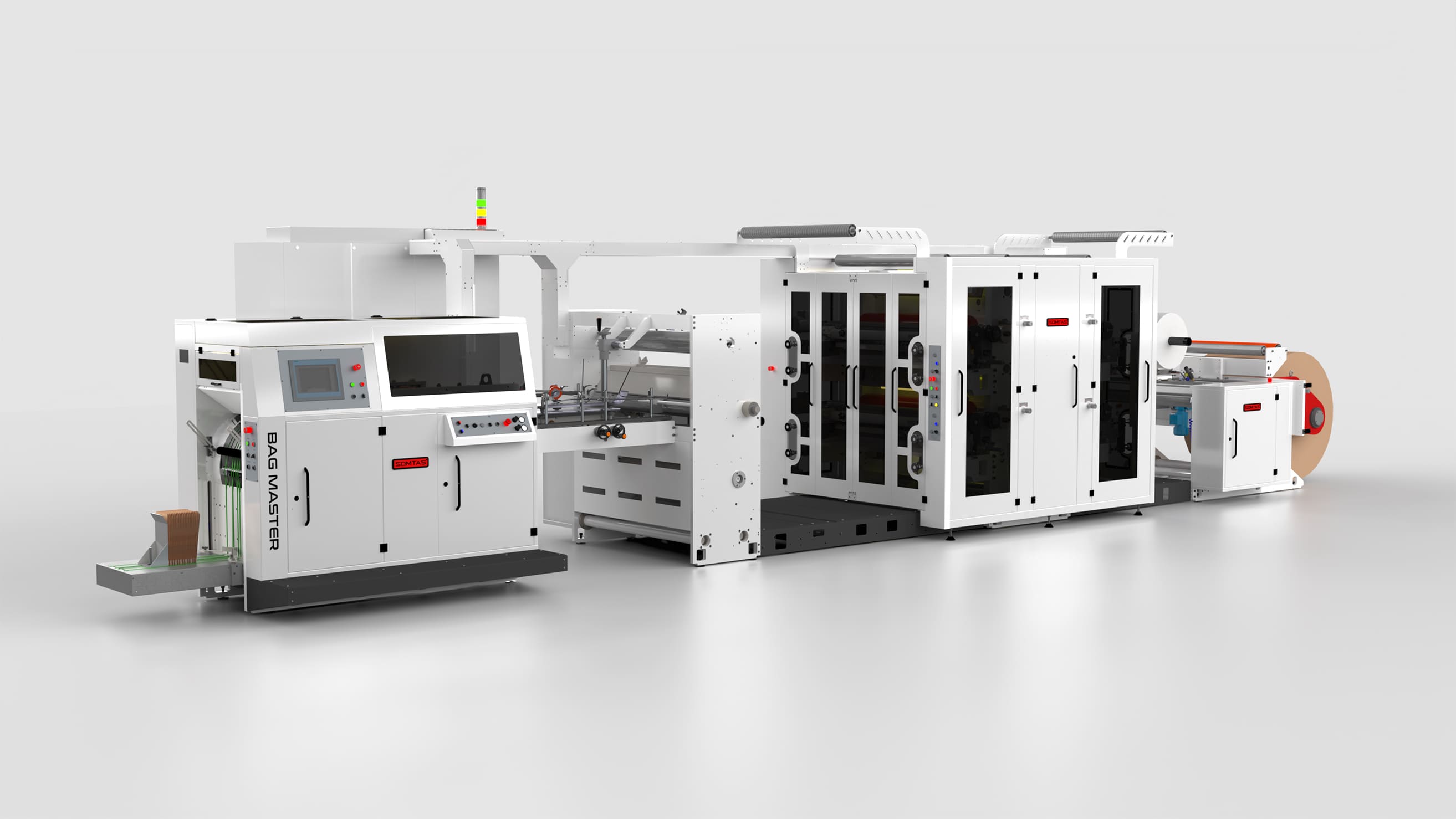

BAG MASTER L

It is the flat and satchel paper bag production machine of the BAG MASTER model newly developed by SOMTAŞ in 2007. Easy to use, quick integration, common point of engineers, fast and low cost production are brought together in this machine.

BAG MASTER L MODEL

The common point of manufacturers who want to produce the easiest products with lower investment costs is the Bag Master L model. It is an environmentally friendly machine that can be integrated into any production site.

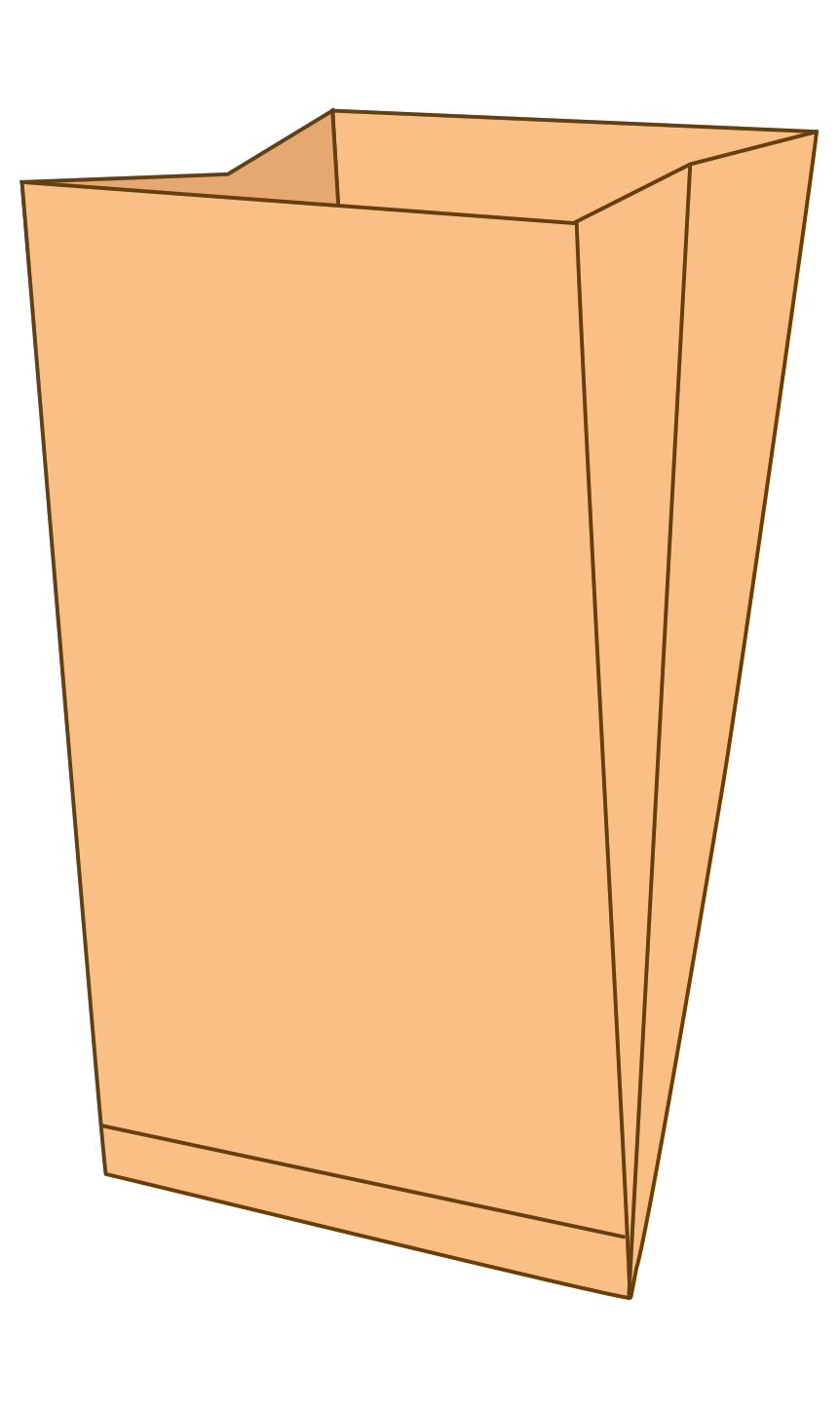

Capable of making 600 flat and satchel paper bags per minute, this machine is suitable for market requirements and ideal for efficient and competitive bag production. You can print four colors or six colors in-line and produce paper bags with or without windows. You can produce baguette bread bags, sandwich bags, pastry paper packaging products with this machine.

KEY FEATURES

Successful in every field

Quick format change by means of servo drives

Solid construction

Suitable for high paper weights

APPLICATION EXAMPLES

Bakery bags

Baguette bags

Kebab bags

Maximum Speed: 150 m/min – 600 bags/min

Cutting/Cut-off Length: 160 – 770 mm

Bag Length: 150 – 760 mm

Bag Width: 80 – 350 mm

Gusset Depth: Max. 80 mm

Cold Glue System

Hot Glue System

Winding Group /B.O.P.P Warp (For Windowed Bag Production)

4 or 6 Color In-line Flexo Printing Unit

Extra Color Unit (Flexo)

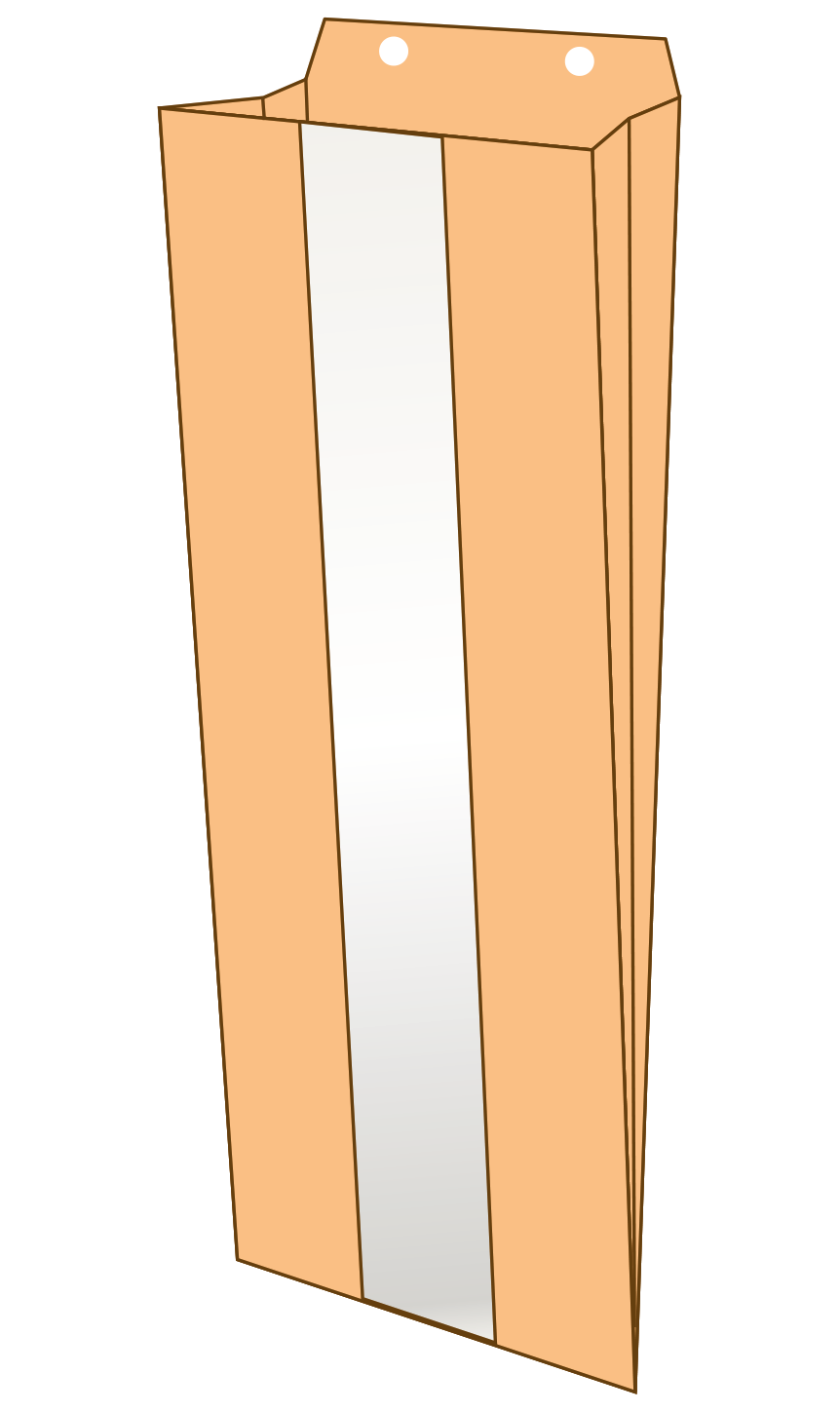

Wicket Unit No Print ( For automatic bread filling machines)

Wicket Unit For 4 or 6 Color ( For automatic bread filling machines)

Sleeve System

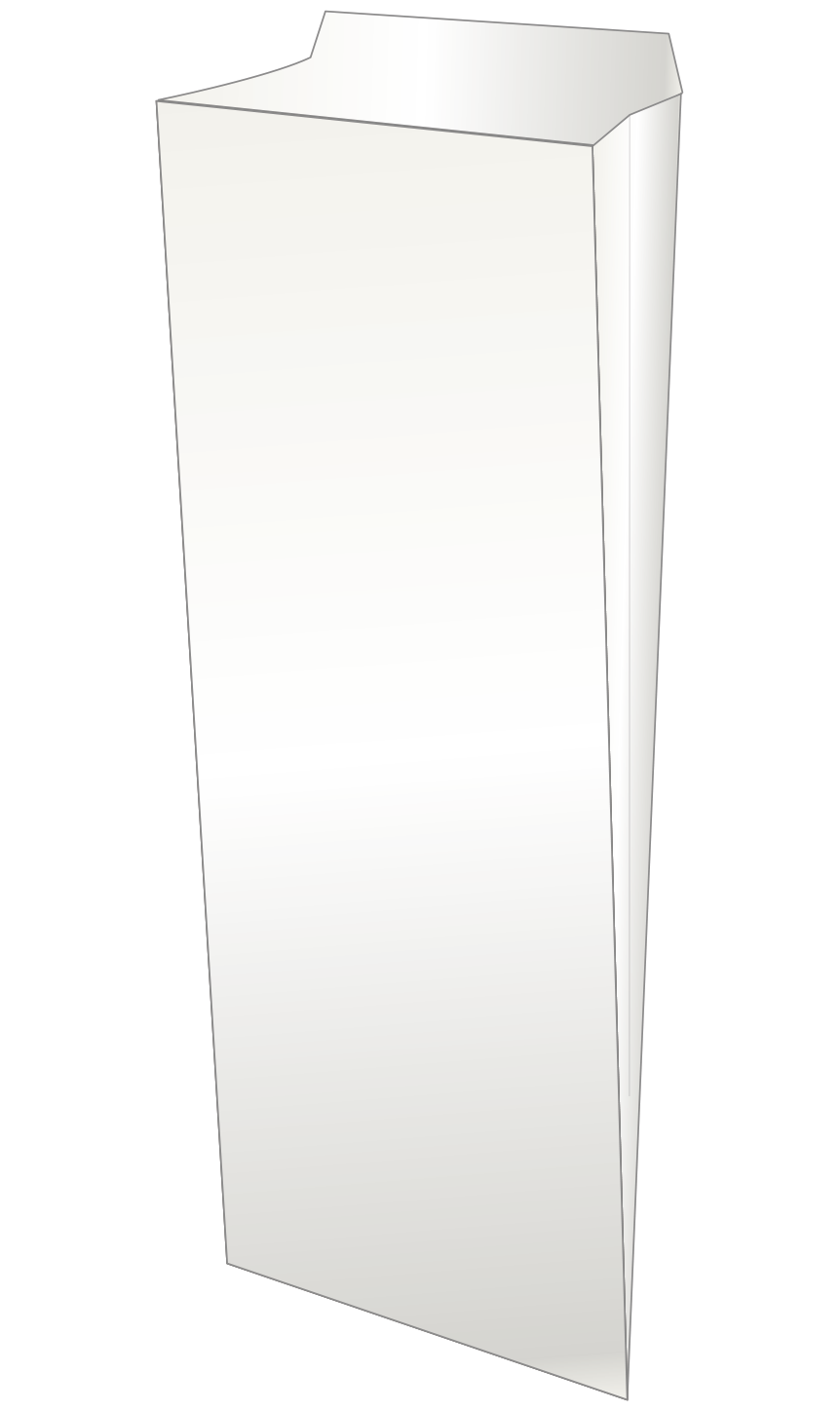

Paraffin Unit (Waxer 900)

Twin Stream (Double Line)

Doctor Chamber Blade System

Ceramic Anilox Roller

L Bag Twin Stream

Lateral Control

BOPP + Unwinder Unit 900

Unwinder Unit 900

Rewinder Unit 600

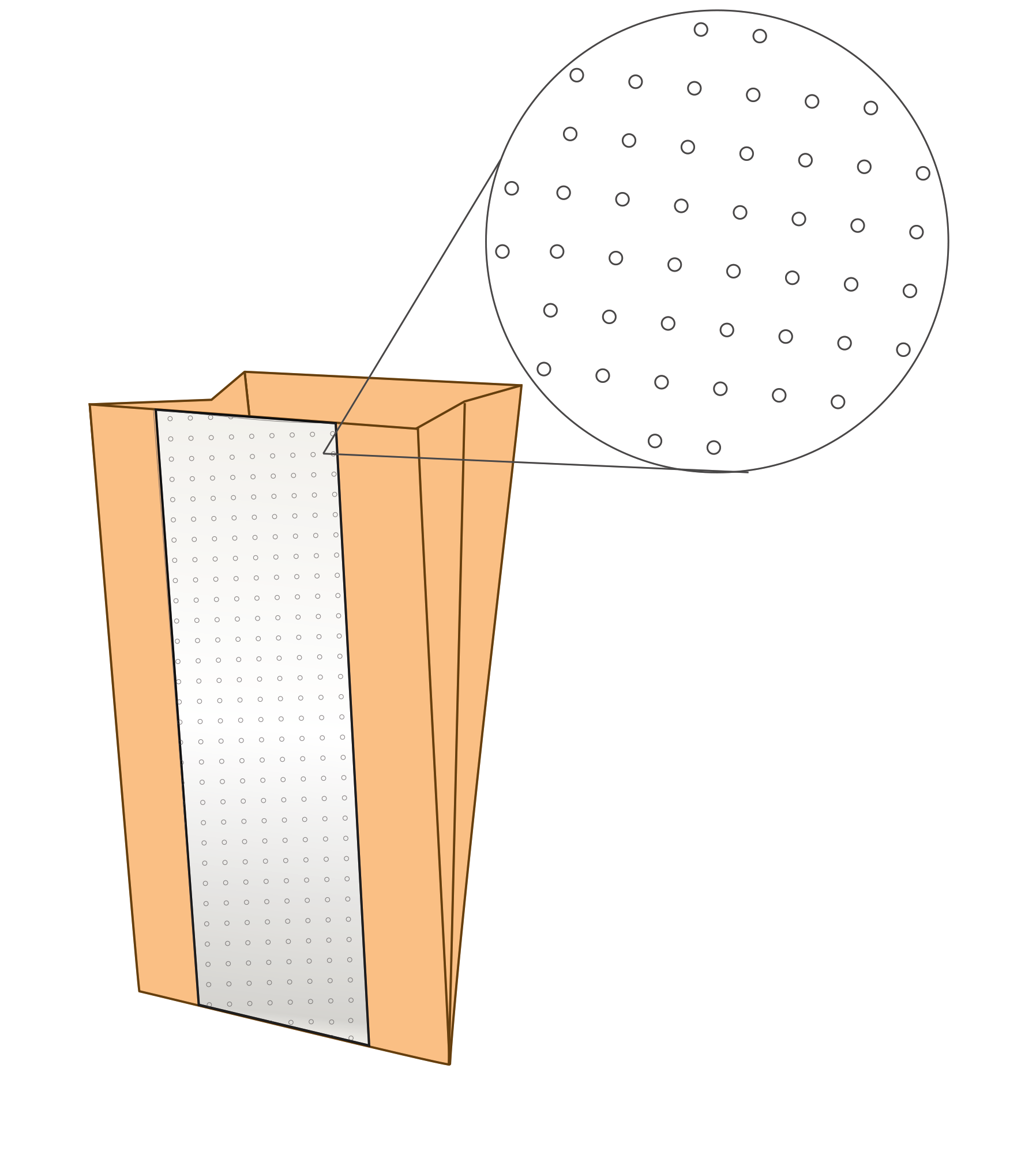

Microperforation Unit

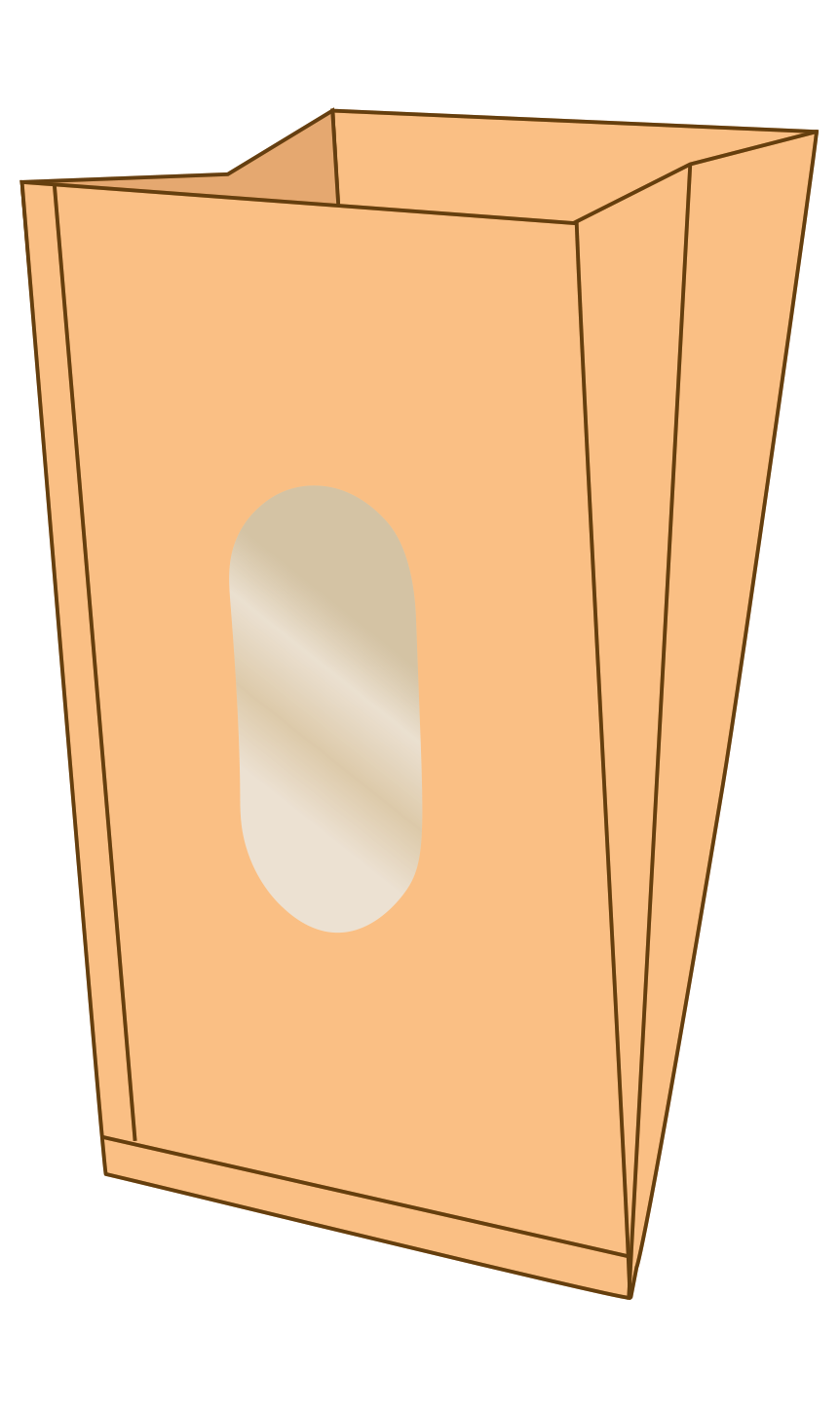

Die Cut Window + Lamination

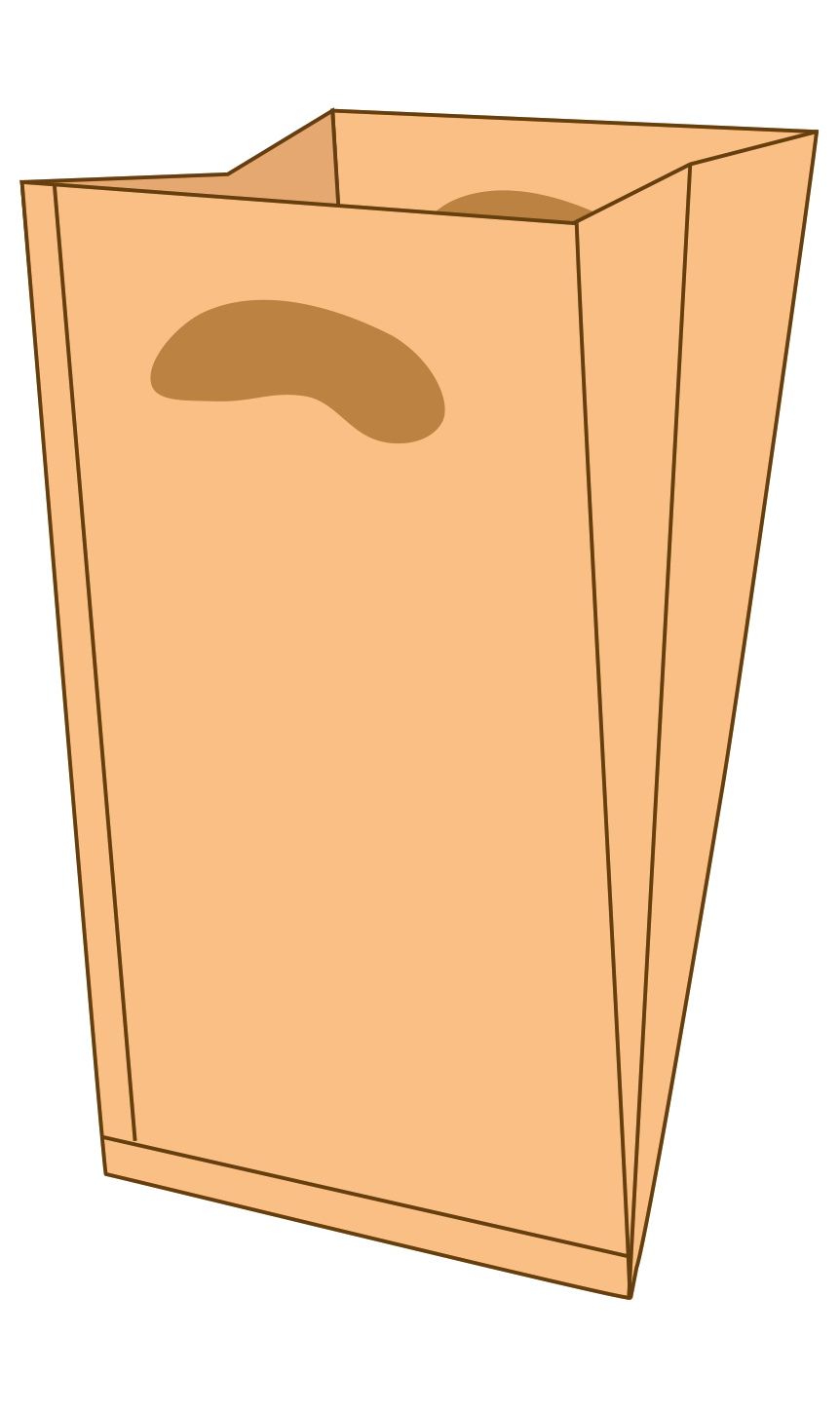

Punched Handle Unit

BST Web Guide System

360-Degree Motorized  Longitudinal Register
